Goods lifts, production-line lifts and paint booth operator lifts
Hydraulic Goods Lift Manufacturer in Noida, Delhi NCR | Wellman
Mesh or panelled cage lifts for moving goods safely between floors, specifically designed for the required load, travel and door arrangement.

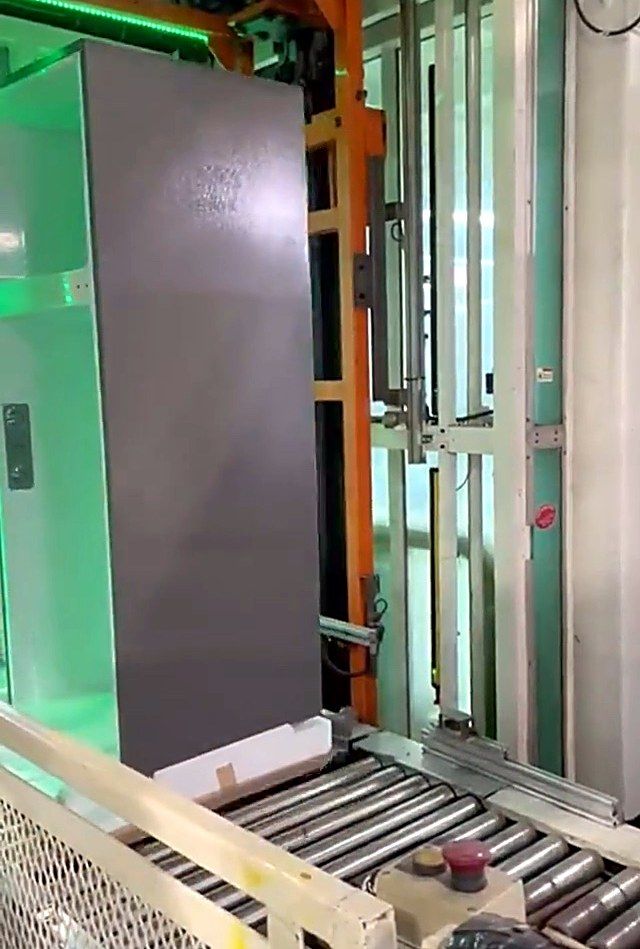

An automatic vertical lift that transfers products such as refrigerator cabinets between conveyor levels on appliance production lines, synchronised with the line for continuous, hands-free flow.

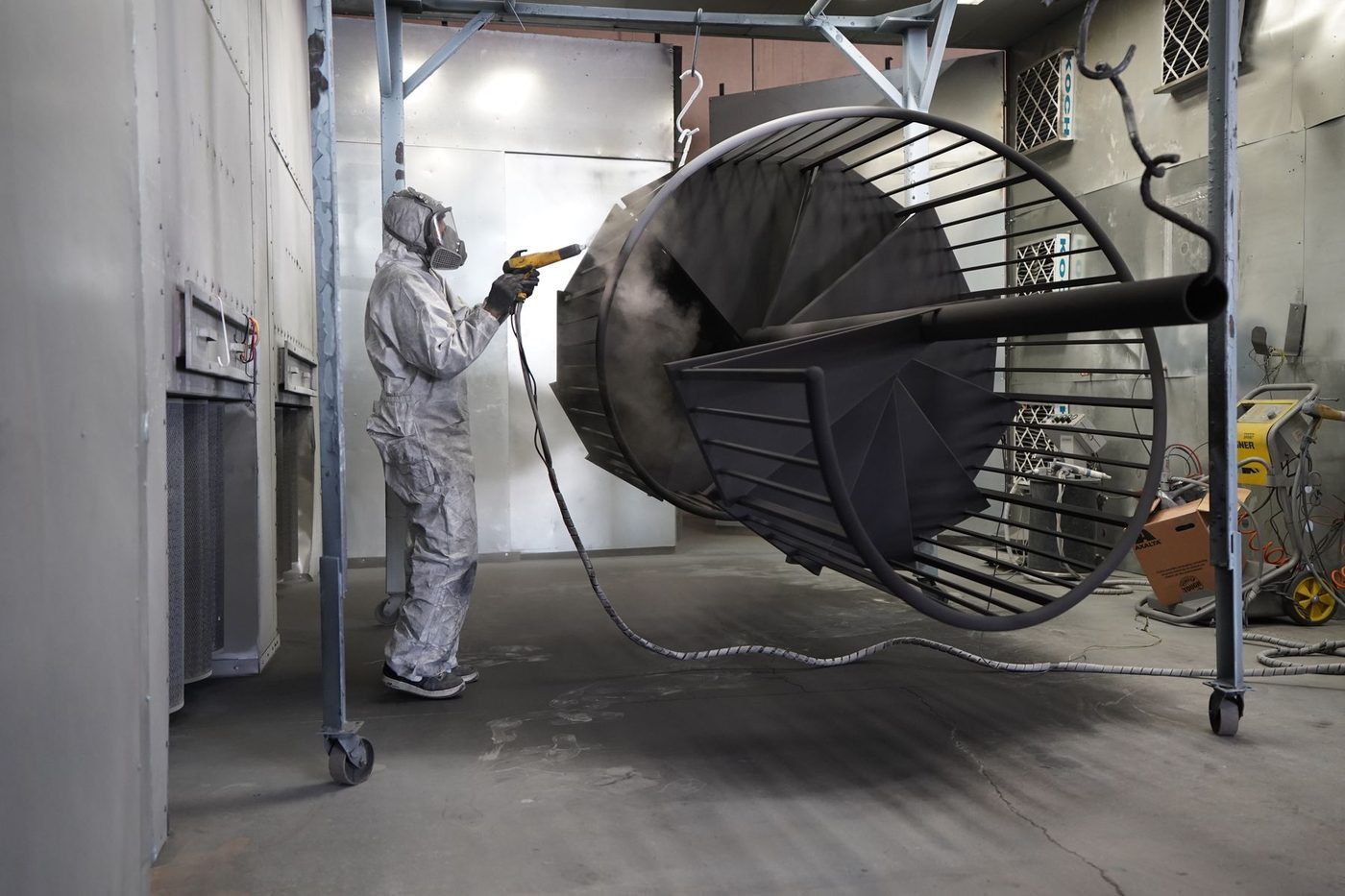

Illustrative imageAn operator platform that travels along three axes inside a paint booth, positioning the painter safely at the right height and reach for every surface of the component. Smooth, precise movement improves finish quality, reduces fatigue and removes the need for ladders and scaffolding.
Specifications shown are from Wellman supplies; every machine is built to the customer’s requirement. Images marked “Illustrative image” show typical applications.
Buyer Questions
500 to 3,000 kg, with travel up to 15 m (4 floors) at 3 to 6 m/min. Capacity, platform size and travel are built to your requirement.
An automatic lift that moves products, such as refrigerator cabinets, between conveyor levels on a production line. It is interlocked with the line conveyors and lifts up to 6 m.
A platform that moves the painter along three axes (length, width and height) inside a paint booth. Our design carries up to 300 kg, travels 14 to 16 m along the booth and lifts up to 5,500 mm.
Mesh or sheet-metal enclosures, floor-level safety gates, guard rails and safety interlocks, with a hydraulic power pack and control panel.
