What material handling equipment does Wellman supply?

Warehouse AS/RS (with our automation partner), tyre storage racks, carton flow shelving, finished-goods rack trolleys, hydraulic dock levellers, mobile floor cranes, scissor lift tables and hand pallet trucks.

What capacity are your dock levellers?

6 to 10 tonnes, with a 2,000 × 2,000 mm deck and a working range of ±300 mm. Pit-mounted and edge-of-dock versions are available.

How much load can carton flow shelving carry?

Up to 300 kg per shelf, with lanes sloped at 3 to 5° so cartons feed forward by gravity for first-in, first-out picking.

Who supplies the AS/RS system?

Wellman designs and supplies the storage racking and in-feed and out-feed conveyors. Our automation partner supplies the shuttles, stacker cranes or robots and the WMS software. Layout, installation and commissioning are coordinated as one project.

Material Handling Equipment Manufacturer in Delhi NCR

Illustrative image

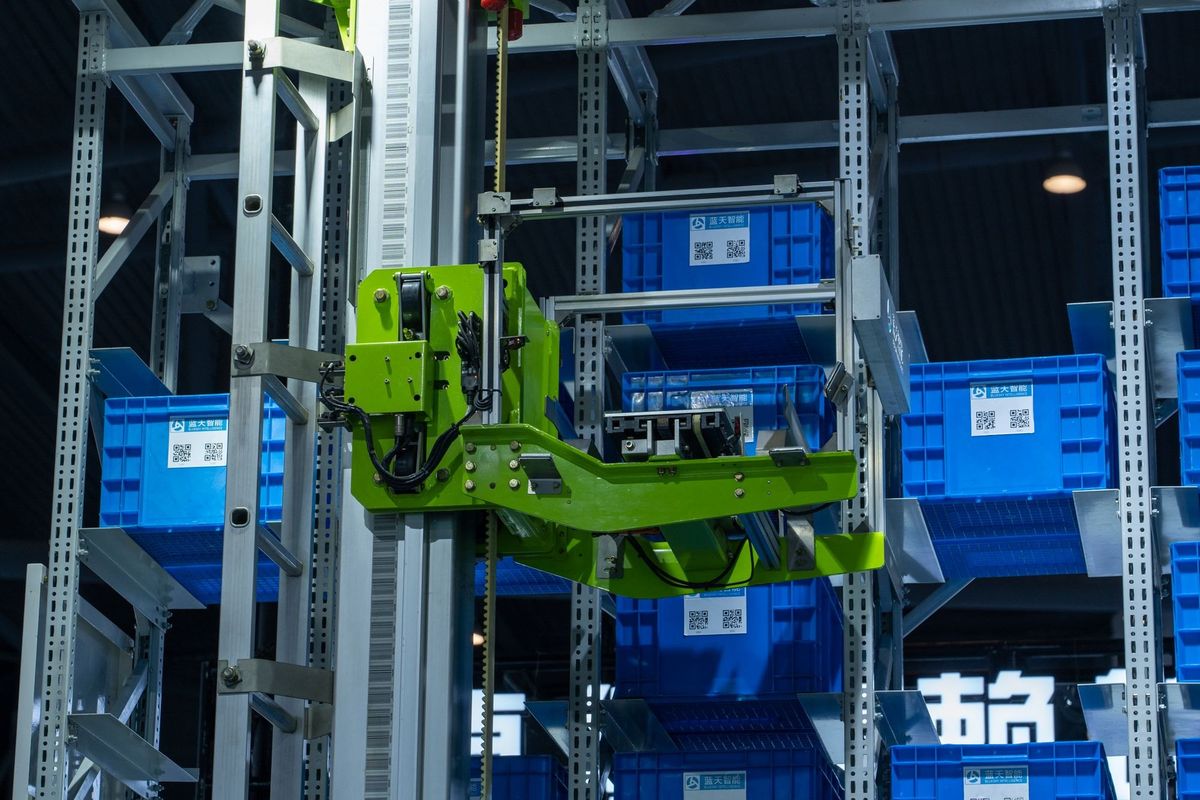

Warehouse AS/RS System

Automated Storage and Retrieval Systems for bins, cartons or pallets, delivered with our automation partner. Wellman designs and supplies the storage racking and the in-feed and out-feed conveyors, while our partner provides the automated retrieval equipment and control software. Together, we deliver one integrated system.

Wellman scope: high-density racking and conveyor systems
Partner scope: shuttles, stacker cranes or robots, and WMS/control software
Coordinated layout, installation and commissioning
Bin, carton or pallet-load configurations

Illustrative image

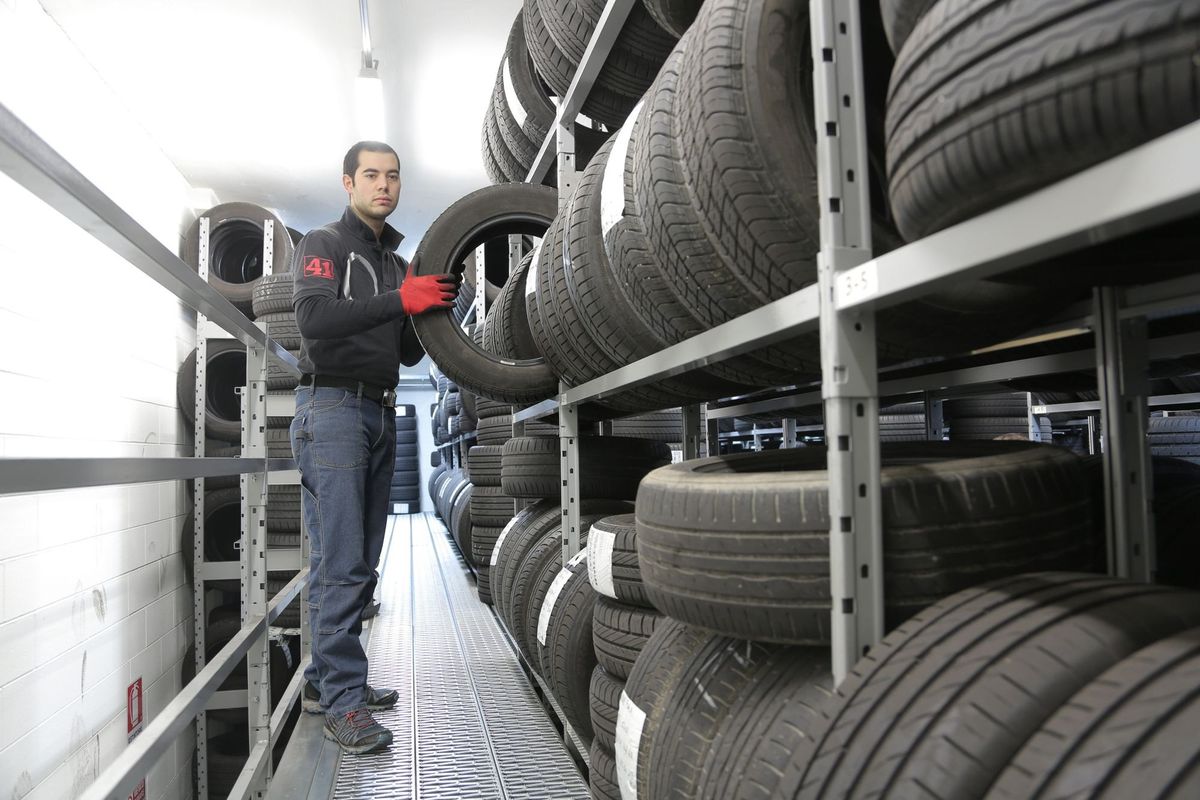

Tyre Storage Racks

Purpose-built racks that store tyres vertically for easy access and damage-free storage, used in tyre warehouses, dealerships, service centres and vehicle plants.

Vertical tyre storage on beam levels
Adjustable levels for different tyre sizes
Single- or double-sided, bolted construction
Mobile and stackable versions available

Illustrative image

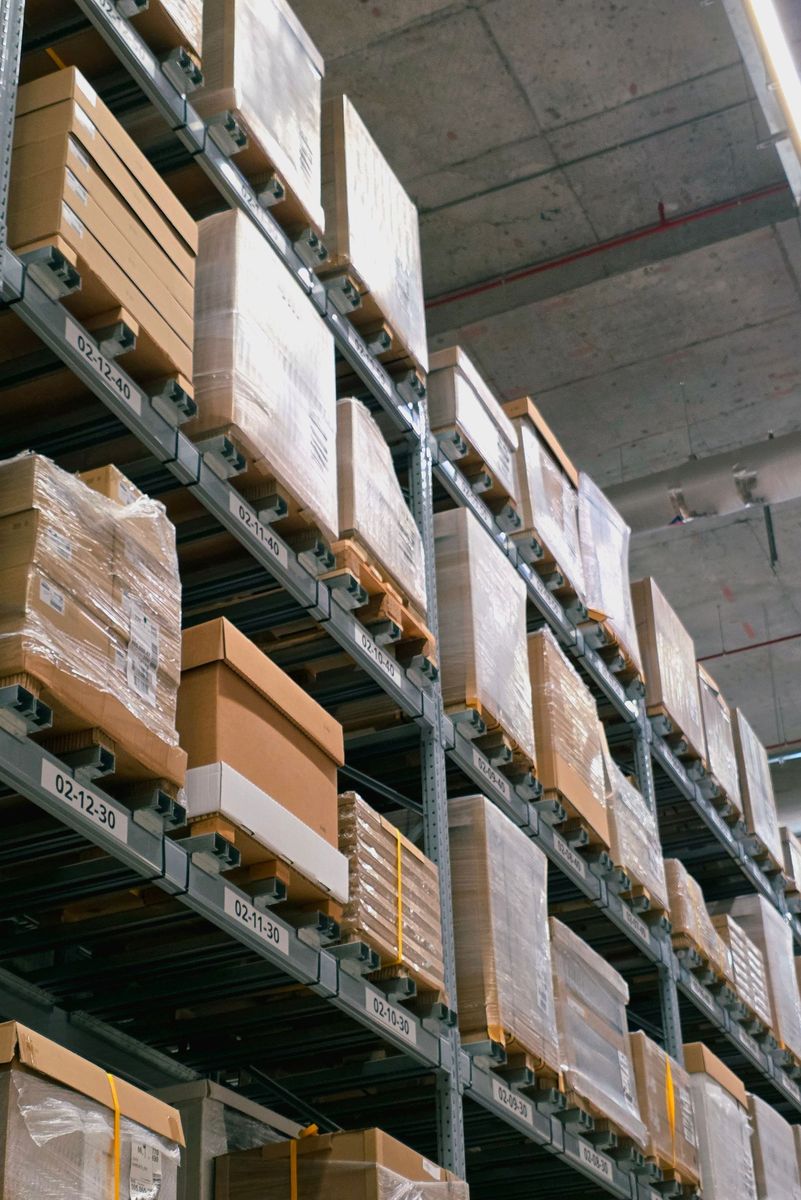

Carton Flow & Gravity Shelving

Inclined roller shelving that feeds cartons and bins forward by gravity to the picking face, giving first-in, first-out stock rotation and faster picking in stores, warehouses and line-side supermarkets.

Shelf load: up to 300 kg per shelf
Inclined roller lanes for gravity-fed FIFO flow
Separate loading and picking faces
Adjustable lane widths and shelf angles
Ideal for order picking and line-side kitting

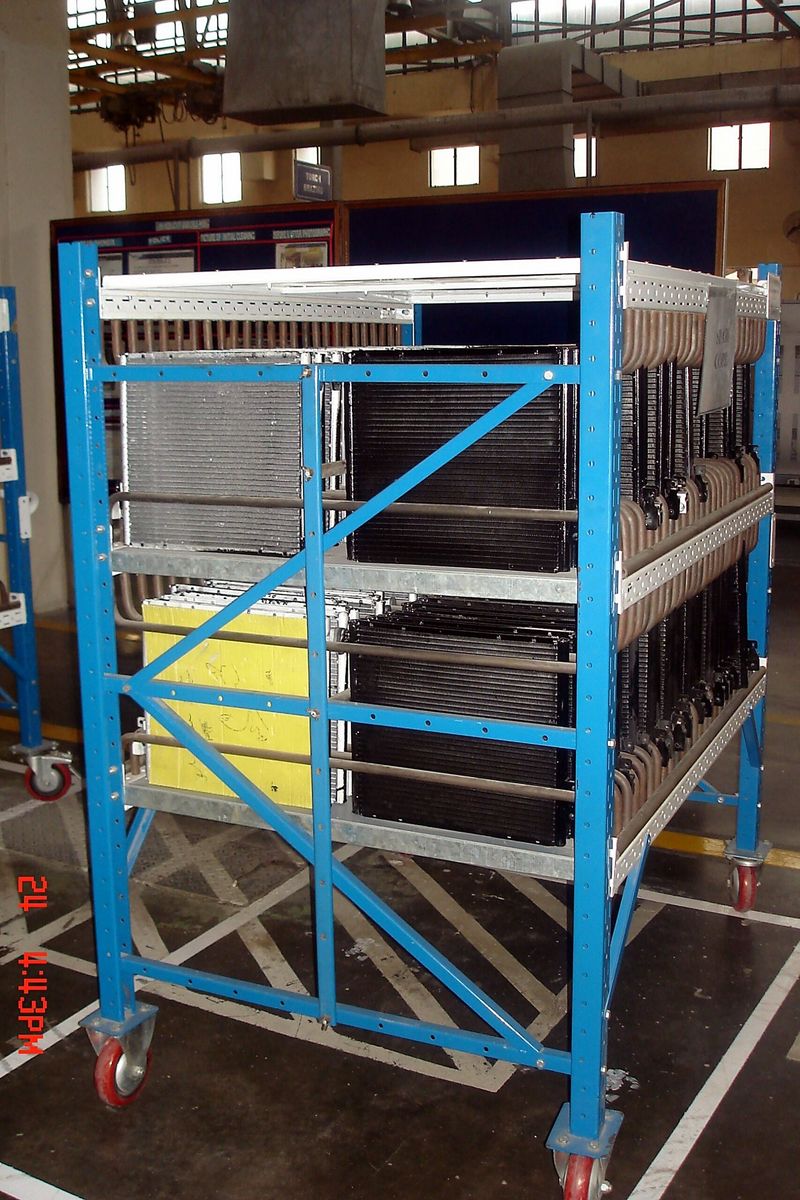

Finished-Goods Rack Trolley

Multi-tier mobile rack trolleys for the safe storage and line-side movement of finished goods and components, built to the size of the parts handled.

Fabricated steel frame with adjustable shelves
Heavy-duty castors for easy manoeuvring
Dimensions to customer requirement

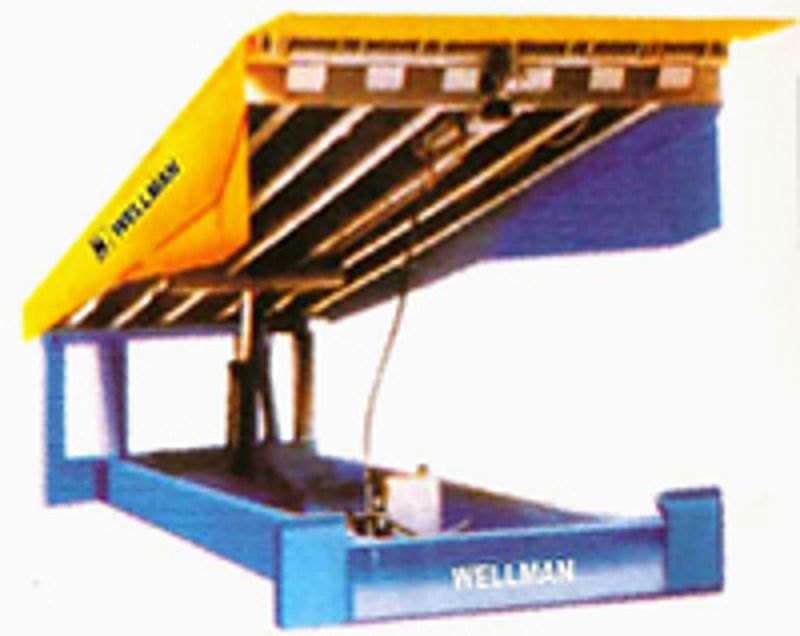

Hydraulic Dock Leveller

A hydraulic dock leveller bridges the gap and height difference between the loading dock and the truck bed, so forklifts and pallet trucks can load and unload safely and quickly. The deck and hinged lip adjust to suit trucks of different heights.

Capacity up to 10,000 kg (supplied to TS Tech, Pathredi)
Deck width 2,200 mm; length 2,800 mm with lip extended; 400 mm lip
Working range 1,000 – 1,600 mm; 8 mm MS chequered plate deck on MS I-section structure
1 HP hydraulic power pack, Yuken hydraulics, push-button control
Hydraulic lifting with hinged or telescopic lip
Adjusts to varying truck-bed heights
Heavy-duty steel deck with anti-skid chequered plate
Pit-mounted or edge-of-dock versions
Platform size and capacity to customer requirement

Mobile Floor Crane

Counter-balanced hydraulic jib cranes on castors for lifting dies, moulds and heavy components anywhere on the shop floor.

Scissor Lift Table

Mobile hydraulic lift trolleys, including mirror-polished stainless-steel builds for clean and food-grade environments.

Hand Pallet Truck

Reliable hydraulic pallet trucks for everyday pallet movement across warehouse and line-side operations.

Specifications shown are from Wellman supplies; every machine is built to the customer’s requirement. Images marked “Illustrative image” show typical applications.
